Blanking Press

Download Data Box:

Technical_Data_-_Blanking_Press.pdf

Opens with: Adobe Acrobat

Using a one, two or four point press design, JIER manufacturers a high quality blanking press and blanking press line that meets the wide ranging tonnages, materials, and automation demands of today’s industries.

Features

Welded structure
Eccentric drive
Herringbone gear
Hydraulic overload protection
High speed auxiliary equipment

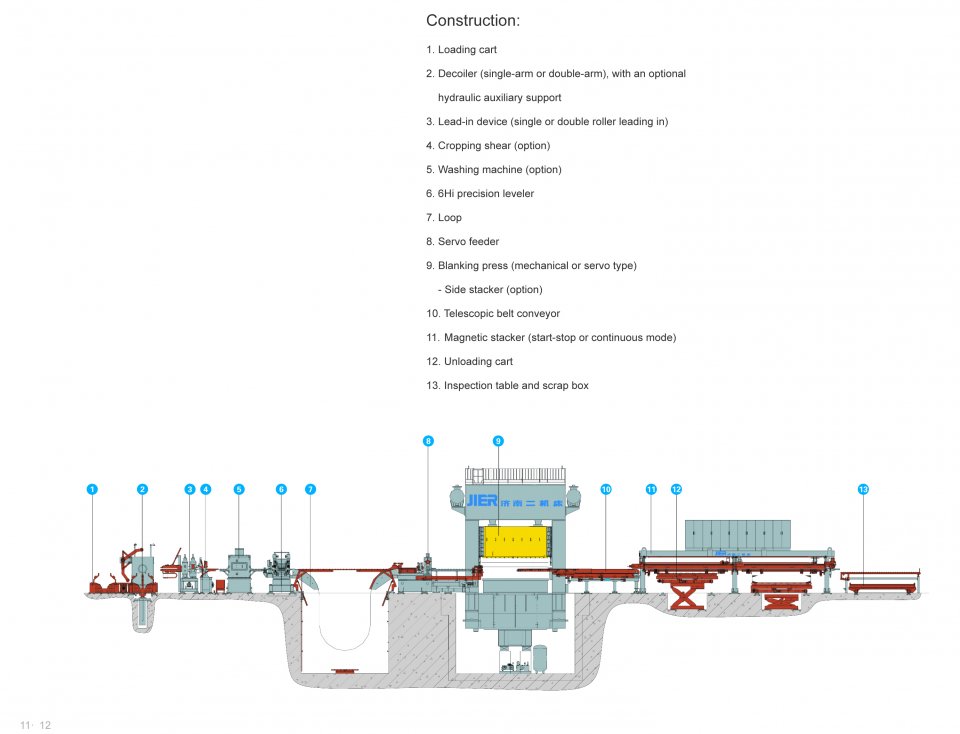

Diagram:

Click to enlarge:

View All Metal Forming Equipment Below:

Start - Stop Shearing Line

Max. line speed: 90m/min., max. production rate: 60spm, high speed automation.

Swivel Shearing Line

Max line speed: 120m/min, max production rate: 110spm, swivel angle: 0 – 30”, high speed automation.

Rotating Shearing Line

Max line speed: 120m/min, max production rate: 110spm, high speed automation.

Blanking Line

The JIER blanking line combines the design of world class front-of line, blanking press, and end-of-line technology. This line is designed for a variety of materials and blank shapes.

Lamination Blanking Line

The JIER Lamination Blanking Line is recognized for its ability to produce two parts from a single die while blanking and stacking multiple part shapes.

Progressive Die Press Line

The JIER progressive die press line marries JIER’s progressive die press to world class front-of-line and end-of-line technology that includes a loading cart, decoiler, lead-in equipment, leveler, loop, servo feeder, and exit belt conveyor.

Bundle Turnover

The JIER heavy duty bundle turnover is a stable, fast action machine capable of processing multiple part sizes.

Blank Washing Unit

The automated JIER blank washer consists of a loading cart, destacker, washing machine, stacker, and unloading cart.

Blank Oiling Unit

The JIER Blank Oiling Unit is capable of oiling both sides of regular or irregular shaped blanks.

S2-400D IN STOCK PRESS

PRESS IS AVAILABLE FOR SHIPMENT Model: S2-400D Capacity 440 Ton

SE4C-630 SERVO

630 TON Table size (LR X FR) 4750 x 2750 mm Slide stroke 200 mm Continuous speed without load 1~80 SPM

TLS4-1650-5500-2500-SOLD

1650 US TONS SPM 8-25 STROKE LENGTH 863 mm SHUT HEIGHT 1200 mm SLIDE ADJUST 400 mm

High Speed Tandem Press Line

JIER is the global leader in the production of high speed tandem lines designed to meet various material types (steel, HSS, aluminum) and dimensions.

Transfer Press

High speed, flexibility, and efficiency in a small footprint is the hallmark of the JIER transfer press and press line.

Progressive Die Press

From the loading cart and decoiler to the exit conveyor belt, JIER offers an efficient solution for progressive die applications. The JIER press (link, eccentric or servo driven) produces a quality part at the optimum speed.

Straight Sided Mechanical Press

Four-point, two-point; single action or double action, JIER has the mechanical press to meet all industry standards.

Servo Press Technology

JIER servo presses with direct drive servo motors, allow you to eliminate the traditional flywheel/clutch & brake systems that require continual maintenance. This feature also provides enhanced slide control, reduced die/tool wear, and reduced energy consumption.

Press Automation

JIER metal forming technology has successfully integrated with virtually every major transfer equipment and front-of-line / end-of-line auxiliary equipment manufacturer in the market today.

C Frame Press

Sturdy, fast and easy to operate, JIER offers a wide variety of C or Gap Framed Presses.

Gantry Type CNC Boring & Milling Machine Centers

Model XK21 & XH21 w/moving beam. Gantry type with movable crossrail. Table width: 2m – 6m, Table length: 5m – 20m, Spindle power: 40kW – 100kW, Model XH21. Gantry type with moveable crossrail.

Gantry Type 5-Axis Milling & Boring Machine Centers

Model XKSV24 & XHSV24. Gantry type with fixed crossrail. Dual swiveling milling head: mechanical spindle, mechanically driven electric spindle, torque motor driven electric spindle.

Floor Type CNC Boring & Milling Machine Center

GIMAX floor type. Features: Spindle diameter: o160mm – o250mm TKS69 High Speed Spindle power: 40kW – 105kW.

Machine Accessories

Milling heads, extension, right-angle, narrow right-angle, universal, dual swiveling milling heads, mechanical spindle, electric spindle (mechanically driven).
