Progressive Die Press

Download Data Box:

Technical_Data_-_Progressive_Die_Press.pdf

Opens with: Adobe Acrobat

From the loading cart and decoiler to the exit conveyor belt, JIER offers an efficient solution for progressive die applications. The JIER press (link, eccentric or servo driven) produces a quality part at the optimum speed.

Features:

Fully automated
Short die & tool change
Small footprint
High speed auxiliary equipment

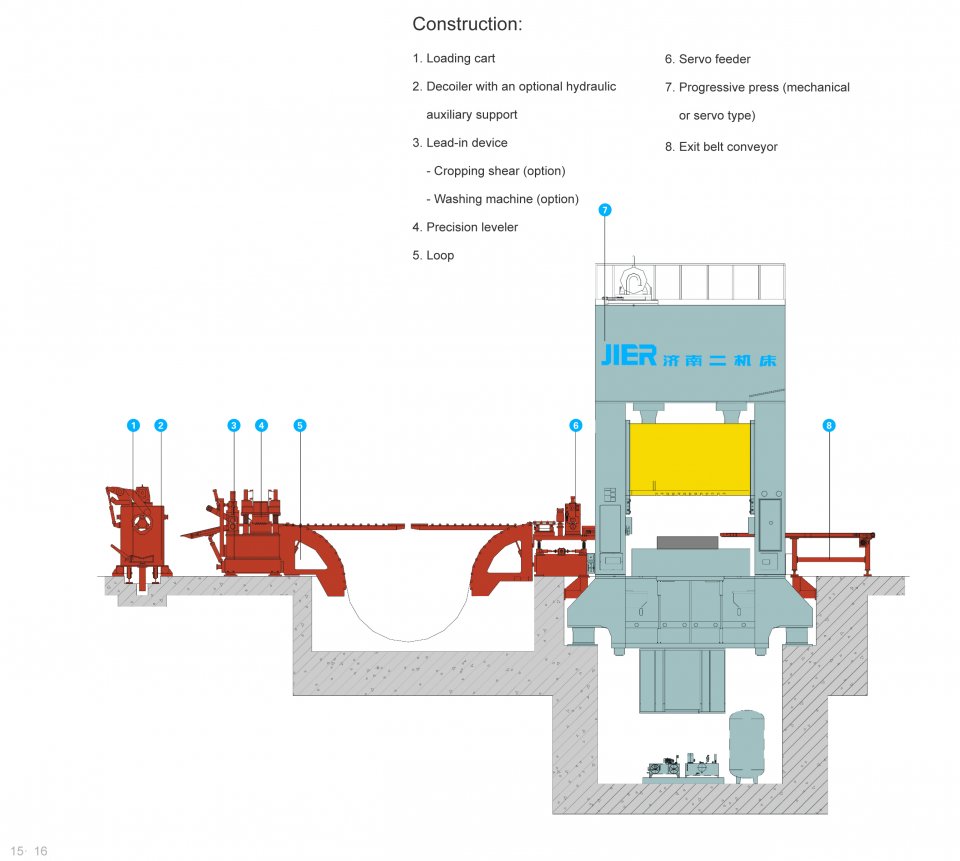

Diagram:

Click to enlarge

View All Metal Forming Equipment Below:

Start - Stop Shearing Line

Max. line speed: 90m/min., max. production rate: 60spm, high speed automation.

Swivel Shearing Line

Max line speed: 120m/min, max production rate: 110spm, swivel angle: 0 – 30”, high speed automation.

Rotating Shearing Line

Max line speed: 120m/min, max production rate: 110spm, high speed automation.

Blanking Line

The JIER blanking line combines the design of world class front-of line, blanking press, and end-of-line technology. This line is designed for a variety of materials and blank shapes.

Lamination Blanking Line

The JIER Lamination Blanking Line is recognized for its ability to produce two parts from a single die while blanking and stacking multiple part shapes.

Progressive Die Press Line

The JIER progressive die press line marries JIER’s progressive die press to world class front-of-line and end-of-line technology that includes a loading cart, decoiler, lead-in equipment, leveler, loop, servo feeder, and exit belt conveyor.

Bundle Turnover

The JIER heavy duty bundle turnover is a stable, fast action machine capable of processing multiple part sizes.

Blank Washing Unit

The automated JIER blank washer consists of a loading cart, destacker, washing machine, stacker, and unloading cart.

Blank Oiling Unit

The JIER Blank Oiling Unit is capable of oiling both sides of regular or irregular shaped blanks.
