Blank Washing Unit

Download Data Box:

Technical_Data_-_Blank_Washing_Unit.pdf

Opens with: Adobe Acrobat

The automated JIER blank washer consists of a loading cart, destacker, washing machine, stacker, and unloading cart.

Features:

Production rate: 40pc/min
Multiple shapes capability
Max blank width: 4500mm
Even oil film thickness and scratch free blank surface

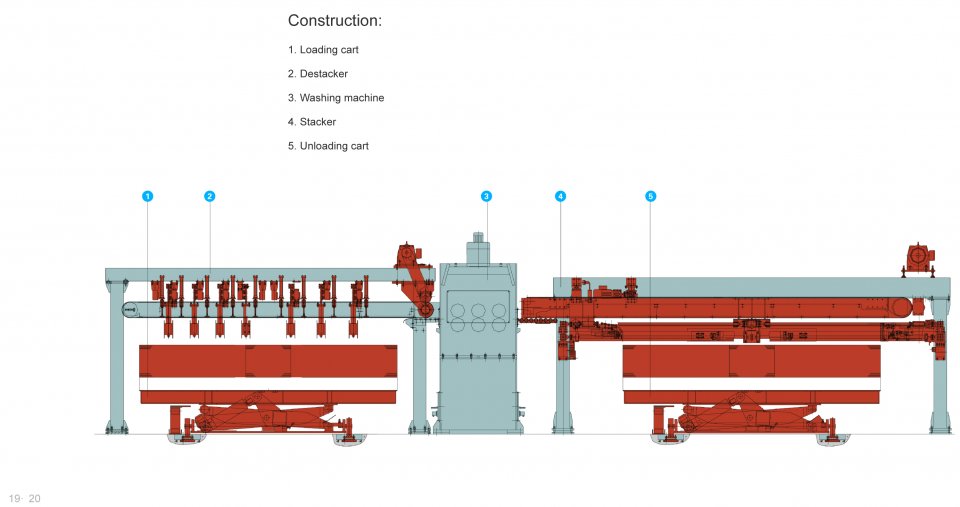

Diagram:

Click to enlarge:
