Blanking Line

Download Data Box:

Technical_Data_-_Blanking_Line.pdf

Opens with: Adobe Acrobat

The JIER blanking line combines the design of world class front-of line, blanking press, and end-of-line technology. This line is designed for a variety of materials and blank shapes.

Features:

Max line speed: 90m/min

Max production rate: 65SPM

Designed for carbon steel, HS steel, hot or cold rolled steel sheet

Designed for multi-shaped and tailored blanks

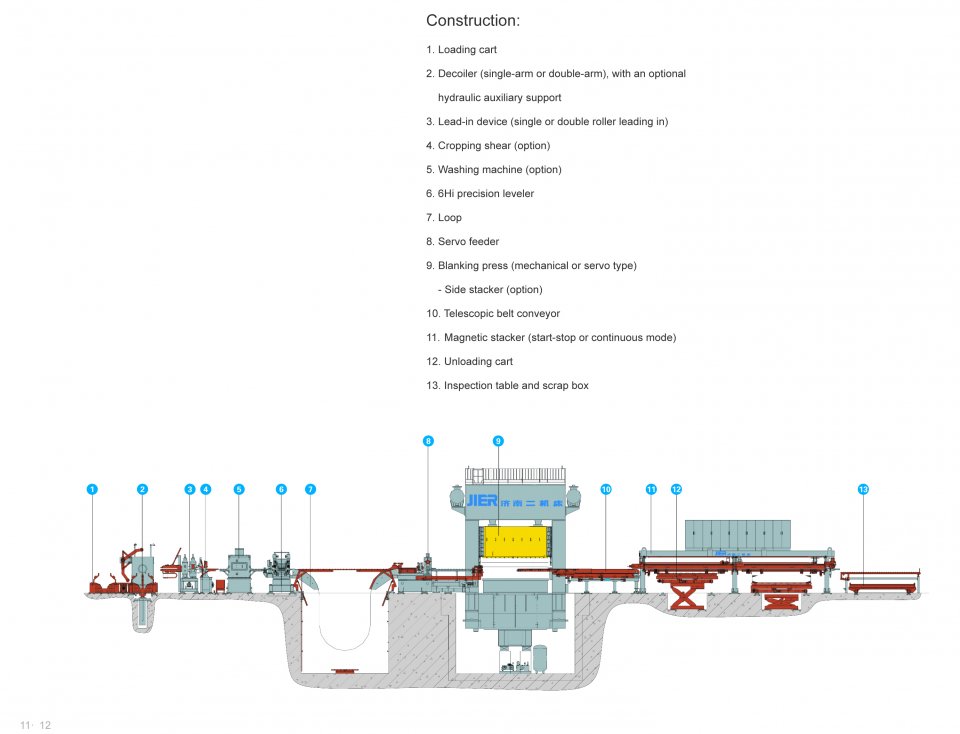

Diagram:

Click to enlarge:
