Progressive Die Press Line

Download Data Box:

Technical_Data_-_Progressive_press_line.pdf

Opens with: Adobe Acrobat

The JIER progressive die press line marries JIER’s progressive die press to world class front-of-line and end-of-line technology that includes a loading cart, decoiler, lead-in equipment, leveler, loop, servo feeder, and exit belt conveyor.

Features:

Max line speed: 90m/min

Max production rate: 65SPM

Designed for carbon steel, HS steel, hot or cold rolled steel sheet

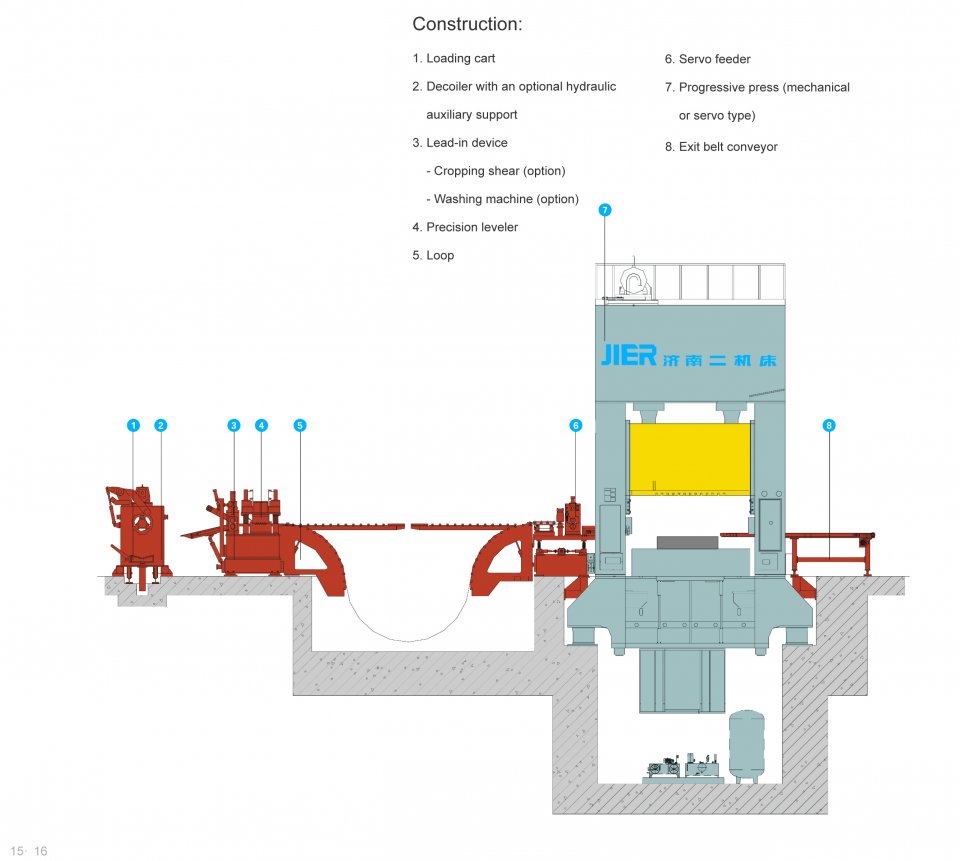

Diagram:

Click to enlarge:
