Rotating Shearing Line

Download Data Box:

Technical_Data_-_Rotating_shearing_line.pdf

Opens with: Adobe Acrobat

Shearing Lines:

JIER’s state-of-the-art design and manufacturing has produced a line of outstanding metal shearing equipment known for its high throughput, rugged construction, and adaptable, easy-to-use controls.

Features:

Max line speed: 120m/min
Max production rate: 110SPM
High speed automation

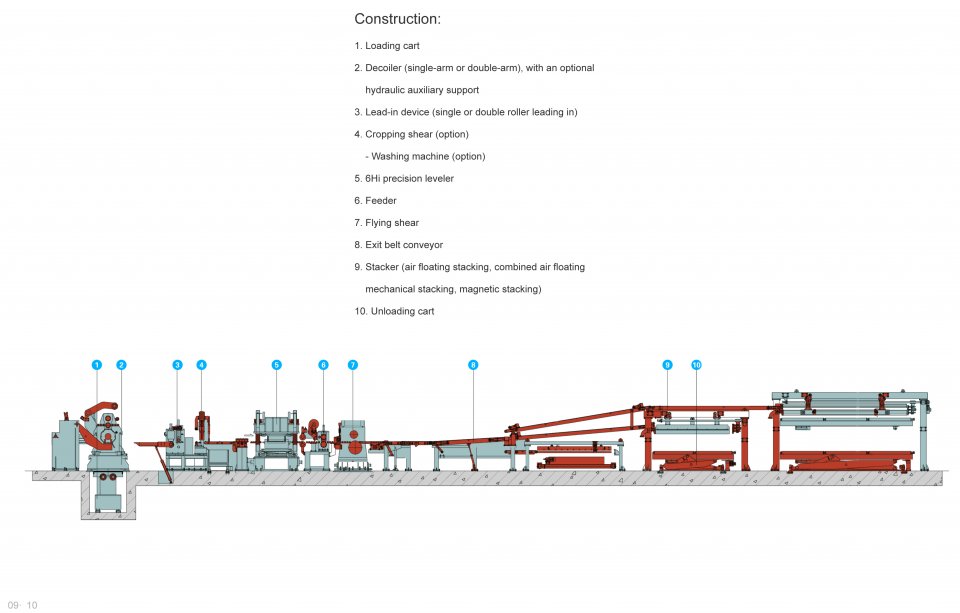

Diagram:

Click to enlarge:

View All Sheet Metal Processing Equipment Below:

Start - Stop Shearing Line

Max. line speed: 90m/min., max. production rate: 60spm, high speed automation.

Swivel Shearing Line

Max line speed: 120m/min, max production rate: 110spm, swivel angle: 0 – 30”, high speed automation.

Blanking Line

The JIER blanking line combines the design of world class front-of line, blanking press, and end-of-line technology. This line is designed for a variety of materials and blank shapes.

Lamination Blanking Line

The JIER Lamination Blanking Line is recognized for its ability to produce two parts from a single die while blanking and stacking multiple part shapes.

Progressive Die Press Line

The JIER progressive die press line marries JIER’s progressive die press to world class front-of-line and end-of-line technology that includes a loading cart, decoiler, lead-in equipment, leveler, loop, servo feeder, and exit belt conveyor.

Bundle Turnover

The JIER heavy duty bundle turnover is a stable, fast action machine capable of processing multiple part sizes.

Blank Washing Unit

The automated JIER blank washer consists of a loading cart, destacker, washing machine, stacker, and unloading cart.

Blank Oiling Unit

The JIER Blank Oiling Unit is capable of oiling both sides of regular or irregular shaped blanks.
