Swivel Shearing Line

Download Data Box:

Technical_Data_-_Swivel_shearing_line.pdf

Opens with: Adobe Acrobat

Shearing Lines:

JIER’s state-of-the-art design and manufacturing has produced a line of outstanding metal shearing equipment known for its high throughput, rugged construction, and adaptable, easy-to-use controls.

Features:

Max line speed: 120m/min

Max production rate: 110SPM

Swivel angle: 0 – 30”

High speed automation

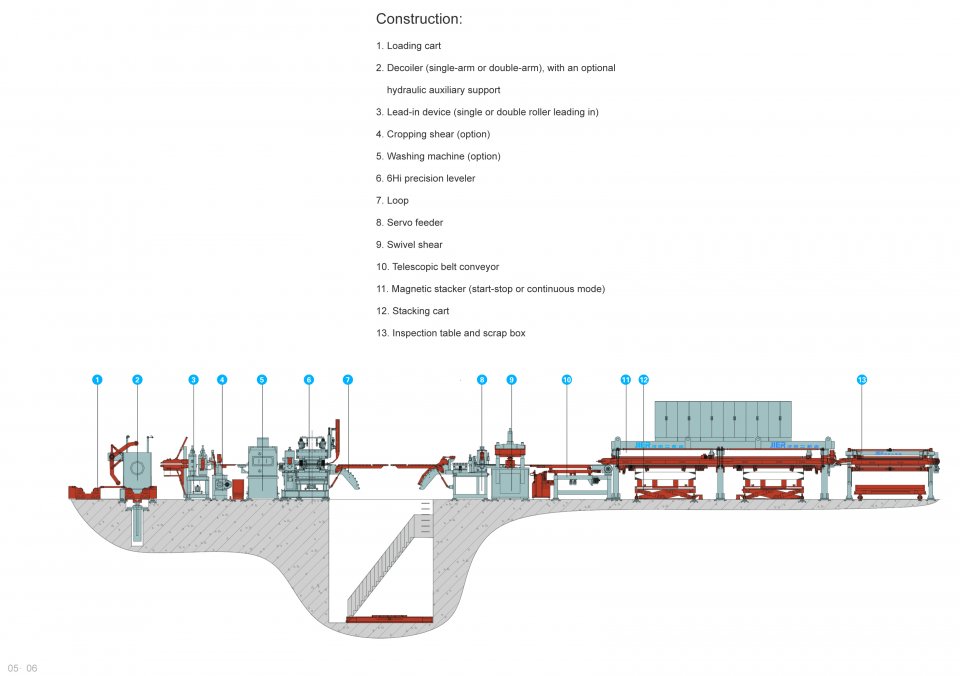

Diagram:

Click to enlarge:
