Lamination Blanking Line

Download Data Box:


The JIER Lamination Blanking Line is recognized for its ability to produce two parts from a single die while blanking and stacking multiple part shapes.

Shearing Lines:

JIER’s state-of-the-art design and manufacturing has produced a line of outstanding metal shearing equipment known for its high throughput, rugged construction, and adaptable, easy-to-use controls.

Features:

Max line speed: 60SPM
Max production rate: 40SPM
One die, two parts capability
Multiple shapes capability
High speed automation

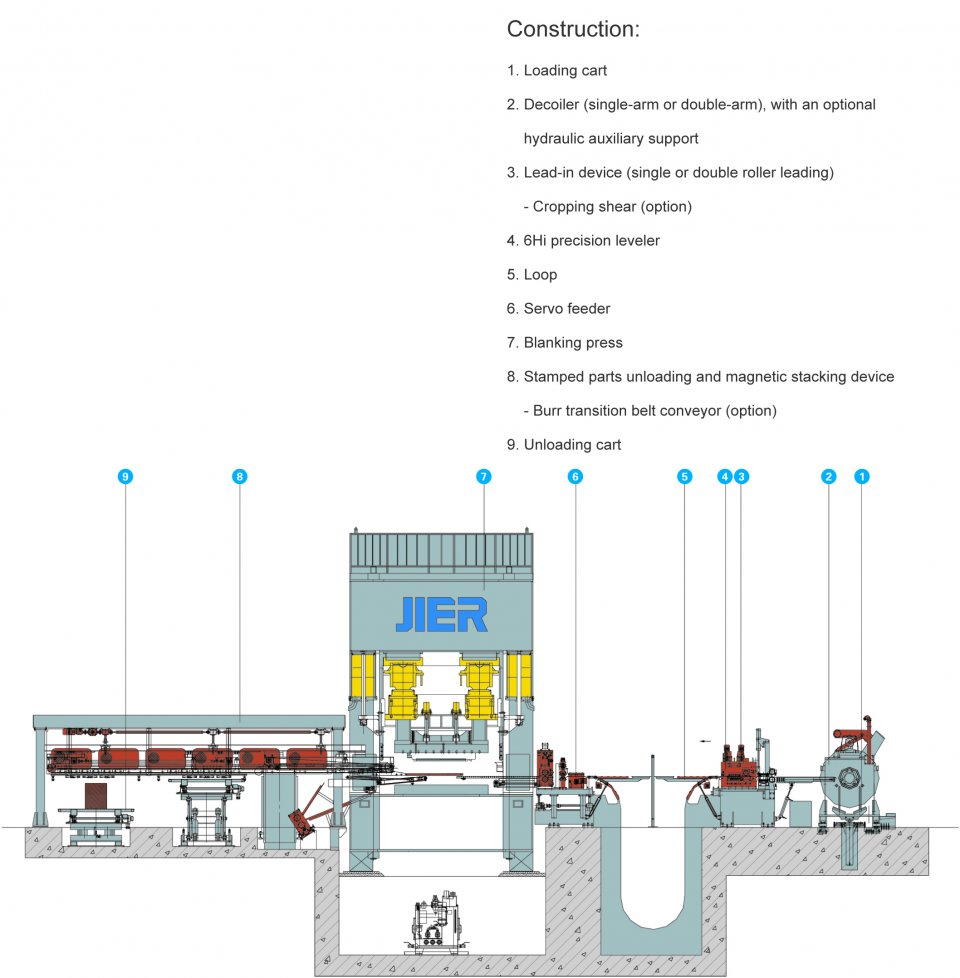

Diagram:

Click to enlarge:


View All Sheet Metal Processing Equipment Below:


Max. line speed: 90m/min., max. production rate: 60spm, high speed automation.
Max line speed: 120m/min, max production rate: 110spm, swivel angle: 0 – 30”, high speed automation.
Max line speed: 120m/min, max production rate: 110spm, high speed automation.
The JIER blanking line combines the design of world class front-of line, blanking press, and end-of-line technology. This line is designed for a variety of materials and blank shapes.
The JIER progressive die press line marries JIER’s progressive die press to world class front-of-line and end-of-line technology that includes a loading cart, decoiler, lead-in equipment, leveler, loop, servo feeder, and exit belt conveyor.
The JIER heavy duty bundle turnover is a stable, fast action machine capable of processing multiple part sizes.
The automated JIER blank washer consists of a loading cart, destacker, washing machine, stacker, and unloading cart.
The JIER Blank Oiling Unit is capable of oiling both sides of regular or irregular shaped blanks.
